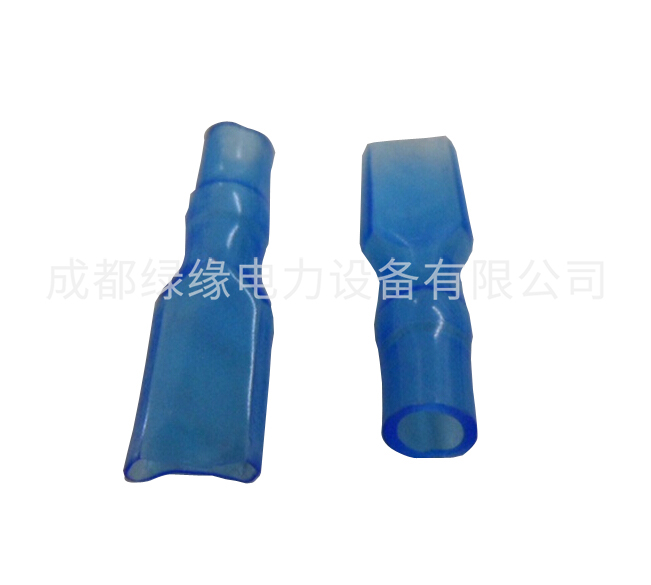

插簧護套
??插簧護套??技術參數
1、溫度范圍：＜105℃。
2、額定電壓：300V AC/DC
3、額定電流：15A max
4、接觸電阻：≤0.01Ω
5、絕緣電阻：≥4MΩ
6、材料：PVC
插簧護套產品參數：
| 系列 | 規格 | 尺寸 | ||||
| D | E | L | W | H | ||
| 110直軟 | 2.5 | 2.5 | 15.5 | 20.0 | 3.8 | 2.0 |
| 3.0 | 3.0 | 15.5 | 20.0 | 3.8 | 2.0 | |
| 3.7 | 3.7 | 15.5 | 20.0 | 3.8 | 2.0 | |
| 187直軟 | 2.5 | 2.5 | 17.5 | 22.0 | 5.8 | 2.3 |
| 2.8 | 2.8 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 3.0 | 3.0 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 3.2 | 3.2 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 3.5 | 3.5 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 4.0 | 4.0 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 4.5 | 4.5 | 17.5 | 22.0 | 5.8 | 2.3 | |
| 250直軟 | 2.5 | 2.5 | 20.0 | 25.0 | 7.8 | 3.3 |
| 2.8 | 2.8 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.0 | 3.0 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.2 | 3.2 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.5 | 3.5 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 3.7 | 3.7 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 4.0 | 4.0 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 4.5 | 4.5 | 20.0 | 25.0 | 7.8 | 3.3 | |
| 5.0 | 5.0 | 20.0 | 25.0 | 7.8 | 3.3 | |
